Refrigerator Amp Draw: A Homeowner Troubleshooting Guide

What is refrigerator amp draw and why it matters

Amp draw is the amount of electrical current a refrigerator uses while it operates. In practical terms, it directly ties to energy use, which affects your utility bill and the compressor’s workload. A healthy fridge maintains a steady cycling pattern, with the compressor energizing and de-energizing to keep temperatures inside the fridge and freezer compartments stable. By understanding amp draw, homeowners can spot inefficiencies early—before a small problem becomes a costly repair. While the exact current varies by model and age, typical running values fall in a few amps, and startup surges can briefly spike higher. Keeping amp draw within the expected range helps protect components, reduce noise, and extend overall appliance life.

Tip: Start with the manufacturer’s spec sheet and compare it to real-world readings taken under normal usage conditions. If readings drift outside the expected window, investigate contributing factors like door openings, weather, or coil cleanliness.

How to measure amp draw safely and accurately

Measuring amp draw requires a safe, accurate approach. Use a clamp-on ammeter (also called a current meter) that can read AC current. Here’s a practical method:

• Ensure the fridge is plugged into a standard outlet and running normally.
• Open the freezer and arrange cords away from the door gasket so you don’t pull the plug or disturb wiring.
• Clamp the meter around the hot wire (one conductor only) of the fridge’s power cord.
• Read the current while the compressor is running and the internal temperature is stable.
• Record readings for several cycles if possible to capture normal cycling.

Important safety note: Do not disassemble electrical panels or touch exposed wires. If you’re unsure about electrical work, consult a licensed electrician.

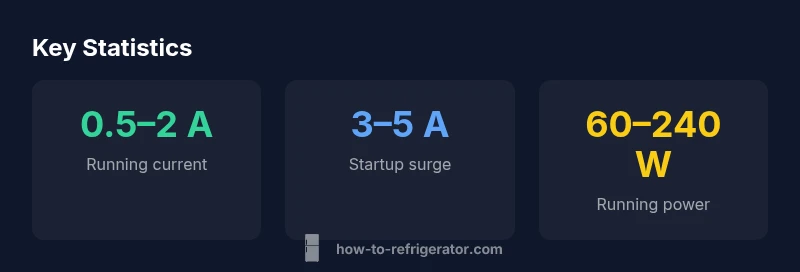

Typical ranges by fridge type

Different fridge configurations show distinct amp draw patterns. Broad categories and their typical ranges include:

• Compact mini-fridges: lower end, often around 0.6–1.6 A when running, with brief surges.
• Standard frost-free refrigerators: commonly about 0.7–2.0 A running, with occasional surges.
• French-door/side-by-side: generally 0.8–2.2 A running, with higher start-up demands due to larger compressors.
• Bottom-freezer models: typically 0.7–1.9 A running, similar surge behavior to standard units.

Note that these ranges depend on age, defrost cycles, and coil cleanliness. A well-maintained unit tends to stay closer to the lower end of its category’s range.

Interpreting readings: what’s normal vs abnormal

Normal readings vary by model, but several patterns indicate health and efficiency:

• Consistent running within the expected range over multiple cycles.
• Short startup surges to 3–5 A that quickly settle back to running levels.
• No persistent spikes above the manufacturer’s spec. If readings are persistently high or rising over weeks, this may signal inefficiency or a failing component, such as an aging compressor or a faulty start relay. Inconsistent readings can also point to poor door seals or frequent door opening.

How amp draw affects energy efficiency and lifespan

Amp draw directly correlates with energy use. Small improvements—like cleaning condenser coils, replacing worn door gaskets, and setting the correct temperature—can lower draw and extend component life. A fridge that runs more efficiently will cycle more smoothly and reduce wear on the compressor and fan motors. Over time, a heavy or irregular load on the compressor can shorten the appliance’s lifespan and increase repair costs. Maintaining clean coils and seals, and keeping the interior at an optimal temperature, helps preserve efficiency without sacrificing cooling performance.

Troubleshooting guide: common causes of high amp draw

When amp draw is higher than expected, consider these common culprits:

• Dirty condenser coils: reduced heat rejection makes the compressor work harder.
• Worn or leaky door seals: warm air leaks raise the interior temperature and trigger longer compressor cycles.
• Faulty defrost system: if defrost cycles are inefficient, the evaporator can frost up and force the compressor to run more.
• Aging compressor or start relay failure: these components may draw more current as they degrade.
• Poor airflow around the unit: blocked intake/exhaust can raise operating temperatures.
• Incorrect temperature settings: very cold freezer or fridge settings can cause unnecessary cycling.

Tip: Addressing multiple contributing factors often yields the best improvement in amp draw and reliability.

Step-by-step action plan for homeowners

1. Confirm model spec: locate the official amp draw range in the user manual or manufacturer website. 2) Measure current: use a clamp meter on a few cycles to establish a baseline. 3) Inspect coils: clean condenser coils if accessible and ensure clear airflow. 4) Check seals: inspect door gaskets for damage or gaps and replace if needed. 5) Verify temperature: set fridge near 37–40°F (3–4°C) and freezer around 0°F (-18°C). 6) Defrost drain: ensure there is no drainage blockage that can cause frost buildup. 7) Listen for abnormal noises: humming or clicking can indicate mechanical issues. 8) Decide on action: if readings remain out of spec or the unit is aging, plan repair or replacement.

When to replace or call a professional

If amp draw readings persistently exceed the expected range after maintenance, especially in older units, it may be time to consult a professional or consider replacement. Major components like compressors or refrigerant leaks require licensed technicians. Weigh repair costs against the appliance’s age and reliability, and consider energy efficiency gains when replacing an old model.
