How to Check Refrigerator Compressor: A Step-by-Step Guide
Learn how to check your refrigerator compressor, diagnose common cooling problems, and decide whether DIY fixes or professional service is needed. Clear, practical steps for homeowners.
You’ll learn to locate the compressor, verify power and operation, inspect related components, and interpret common symptoms. This safe, home-friendly guide covers basic electrical checks, visual signs, and when to call a pro to avoid damage. By following these steps, homeowners can identify whether the issue lies with the compressor, start relay, or other cooling-system parts.
What is a refrigerator compressor and why check it?
The refrigerator compressor is the heart of the cooling system, circulating refrigerant and enabling heat exchange between the evaporator and condenser. When a fridge fails to cool, the compressor, its start relay, capacitor, or the fan behind the condenser may be involved. Understanding how the compressor fits with the condenser, evaporator, and controls helps homeowners troubleshoot safely and avoid unnecessary part changes. According to How To Refrigerator, a solid grasp of the compressor's role empowers you to distinguish between electrical faults, refrigerant issues, and airflow problems. In this section, we’ll cover the basics of how the compressor operates and the typical symptoms that indicate a problem, such as warm air, unusual noises, or longer-than-expected cycling. This knowledge sets the stage for careful, step-by-step testing later in the article.
Safety considerations before you start
Before you touch any electrical components, unplug the refrigerator from the wall outlet and allow any stored electricity to dissipate. Use a sturdy work area with good lighting, and wear safety gloves and eye protection. Never work on live wiring or exposed terminals without proper training. Keep a dry workspace and avoid touching metal parts with wet hands. If you detect burning smells, oil leaks, or visible damage to the wiring or insulation, stop immediately and seek professional help. How To Refrigerator emphasizes that safety is the foundation of successful DIY troubleshooting; rushing a diagnosis can lead to injury or further equipment damage. At every stage, keep a clear head, document what you observe, and move at a controlled pace.
Common symptoms pointing to the compressor
Several telltale signs may suggest a problem with the compressor or its related components. If the unit is not cooling while the fridge light remains on, the air around the vents feels warm, or you hear a persistent buzzing or loud clicking when the compressor should be running, these are red flags. A tripping circuit breaker or a warm exterior surface near the back of the appliance can also indicate an electrical or motor issue. Keep in mind that some symptoms may be caused by the condenser coil being dirty, a faulty fan, or a defective start relay rather than the compressor itself. This section helps you differentiate between symptoms that typically require service and those you can verify with basic checks.
Understanding the compressor and related components
The compressor works in tandem with the start relay, overload protector, capacitor (in some models), condenser coils, and the fan that moves air across those coils. The start relay helps the compressor start, while the overload protector guards against overheating. If the relay or capacitor is weak or loose, the compressor may fail to start reliably or stall shortly after starting. The condenser coils must be clean and free of dust to remove heat efficiently; otherwise the compressor will work harder and may overheat. Knowing these parts helps you target the right component during inspection and avoids unnecessary part changes.
How to diagnose: a practical home-check checklist
- Locate and access the compressor panel safely. Start with unplugging the unit, then remove the back panel or bottom grille as your model requires. A flashlight and a tidy workspace help you avoid dropped components.
- Perform a visual inspection. Look for oil leaks, burnt smells, discoloration, or signs of overheating on the compressor body and nearby wiring. Any obvious damage should prompt professional evaluation.
- Check the power supply. Use a non-contact voltage tester to confirm that mains power is present at the outlet and that the control board is sending a signal to the compressor when the unit is supposed to run.
- Inspect the start relay and capacitor. If your model has a start relay connected to the compressor, reseat it gently to ensure a solid connection. Some models have a capacitor near the relay; check for swelling or leakage and replace only if you have a compatible part and proper procedure.
- Test the electrical resistance (optional and model-dependent). If you have a multimeter and experience with electrical testing, measure resistance across the compressor terminals as per your service manual. Compare readings to the manufacturer’s spec and physical expectations (very high or infinite resistance typically indicates an issue).
- Assess the condenser coil cleanliness and airflow. A dirty coil makes the compressor work harder, which can mimic motor issues. Clean coils with a brush or vacuum and ensure the fan is turning freely.
- Decide next steps. If tests suggest the compressor or start components are faulty, or you’re uncomfortable with any step, seek professional service to avoid refrigerant exposure or electrical hazards.
What to do next if the compressor seems faulty
If signs point to a failing compressor, your best course of action depends on your warranty, model, and the availability of parts. Some issues can be resolved by replacing the start relay, capacitor, or a faulty relay assembly; others require compressor replacement, which typically involves refrigerant handling and specialized equipment. In many cases, a professional repair is more cost-effective and safer than attempting a full compressor replacement yourself. Regardless of the path, verify refrigerant integrity and system seals after any component change and monitor the unit for at least a few days to confirm stable cooling.
Tools & Materials
- Screwdriver set (Phillips and flathead)(Phillips #2 and flathead suitable for interior panels)
- Electrical multimeter(Prefer one that measures AC voltage and resistance)
- Clamp meter or current meter (optional)(Helpful for measuring compressor current draw without breaking the circuit)
- Non-contact voltage tester(Safely verify live power before touching any components)
- Work flashlight(Bright, handheld or headlamp for dark corners)
- Gloves and safety glasses(Protect hands and eyes during panel removal and testing)
- Service manual or model diagram (PDF)(Helpful for identifying relay and terminal layouts)
- Replacement parts (start relay, capacitor) if needed(Only replace with compatible parts for your model)

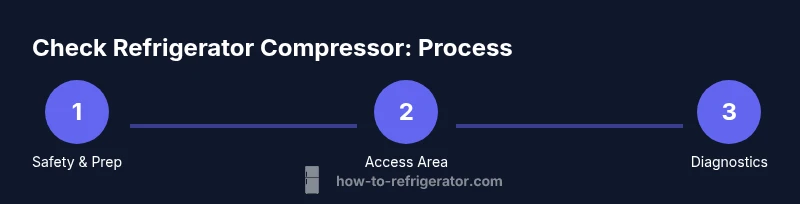

Steps
Estimated time: 60-90 minutes
- 1
Power down and unplug
Start by unplugging the refrigerator from the wall outlet to eliminate any risk of shock. Wait a few minutes to allow any stored electrical energy in local circuits to dissipate. This initial safety step also prevents an accidental restart while you are working near the compressor area.
Tip: Always work in a dry area and wear safety gear to protect against sharp edges and unexpected energization. - 2
Access the compressor area
Remove the back panel or bottom grille of the fridge as required for your model. Use the screwdriver to loosen screws, keep them organized, and expose the area around the compressor and start components. Take photos before disconnecting anything so you can reassemble correctly.
Tip: Label connectors with painter’s tape if you need to disconnect wires—this prevents mix-ups during reassembly. - 3
Inspect for obvious signs
Visually inspect the compressor and nearby wiring for oil leaks, scorch marks, or unusually warm surfaces. Check for oil pooling around fittings and confirm that electrical insulation is intact. Note any audible heat or vibration as the unit runs.
Tip: If anything looks damaged, stop and consider professional service rather than continuing diagnostics. - 4
Test for power at the terminals
With the panel removed but the unit unplugged, reconnect only to perform a non-contact voltage check at the service area or outlet. If voltage is present when the unit should be off, there may be a control or relay issue. If you’re confident, carefully reapply power to observe the compressor’s behavior without touching live components.
Tip: Do not touch exposed metal parts while power is applied; keep your hands away from the terminals. - 5
Check the start relay and capacitor
Locate the start relay and any capacitor connected to the compressor. Reseat loose connectors gently and replace swollen or damaged components only if you have the correct part on hand. If the relay clicks abnormally or the capacitor shows signs of bulging, this can prevent the compressor from starting reliably.
Tip: Take a photo of the wiring before removing any parts so you can reassemble correctly. - 6
Optional: test coil resistance
If you have experience with electrical testing and access to the service manual, measure the coil resistance between compressor terminals with a multimeter. Compare readings to the spec in your manual—large deviations typically indicate a fault. This step is model-dependent and should be done cautiously.
Tip: If you’re unsure about interpreting resistance readings, skip this step and go directly to professional help. - 7
Reassemble and test
Reconnect all panels, reattach screws, and restore power. Listen for the compressor hum and observe whether the fridge begins cooling normally within a reasonable period. If the compressor still does not run smoothly or you hear abnormal noises, turn the unit off and seek professional service.
Tip: Document your observations for the technician, including noises, timing, and any odor or heat you noticed.
FAQ
Can you test a refrigerator compressor without removing the back panel?
Some basic checks, like listening for hum and verifying power, can be done without fully removing panels. A thorough diagnosis usually requires access to the terminals and may involve working near energized components. If unsure, consult a professional.
You can do basic checks without removing the panel, but for a full diagnosis you may need access to the compressor terminals.
What are common signs of a failing compressor?
Signs include insufficient cooling, warm air blowing from vents, unusual buzzing or clicking, and increased energy use. If the exterior remains unusually hot or the unit cycles constantly, it could indicate a problem with the compressor or its start components.
Look for poor cooling, odd noises, and frequent cycling as clues the compressor may be failing.
Is it safe to use a multimeter to test the compressor?
Yes, but only with the unit unplugged and with proper safety precautions. Do not touch live terminals and follow the manufacturer’s instructions for testing resistance or continuity.
Using a multimeter is possible if you follow safety steps and disconnect power first.
What part should I replace first if the compressor is faulty?
Often the start relay or capacitor can be the culprit and are cheaper to replace than the entire compressor. If these parts show wear or failure symptoms, replace them with compatible components.
Start relay or capacitor failures are common fixes before replacing the whole compressor.
When should I call a professional?
If you detect a refrigerant leak, notice persistent overheating, or cannot safely access or identify the issue, it’s best to call a qualified technician. Refrigerant handling requires specialized equipment.
Call a pro if you suspect refrigerant leaks or if the diagnosis feels beyond safe DIY scope.
Watch Video
Top Takeaways
- Unplug before any inspection and work safely.
- Differentiate compressor issues from relay, capacitor, or airflow problems.
- Use proper tools and document steps for later reference.
- Consult a professional if signs of fault persist or if refrigerant work is suspected.
