Where Is Refrigerator Drain Pan: Locate and Access Guide
Learn where to find the refrigerator drain pan, why it matters, and how to access it safely across common models. How To Refrigerator provides practical, model-agnostic steps for homeowners.
Where is refrigerator drain pan? It’s usually at the bottom of the unit, behind a toe-kick or under the rear condenser area. Access typically requires removing the toe-kick or back panel, then locating a shallow tray that collects defrost water. If you can’t locate it, consult the model manual for exact location of your appliance.
Why the drain pan matters
Understanding where the refrigerator drain pan sits is essential for proper maintenance and preventing water leaks. According to How To Refrigerator, the drain pan collects condensate from the defrost cycle and channels it away from the interior. A clogged or misaligned drain pan can cause water pooling inside or under the unit, mildew odors, and even water damage to floors. This guide explains how to locate and access the pan across common refrigerator layouts, and what to do if it’s missing or hard to reach. Regular inspection helps protect floors and maintain appliance efficiency.
- Benefits of a healthy drain pan include reduced leakage risk and fewer odor issues.
- Routine checks are a small step with a big payoff for home comfort.
- Different models place the pan in different spots; knowing the layout type saves time.

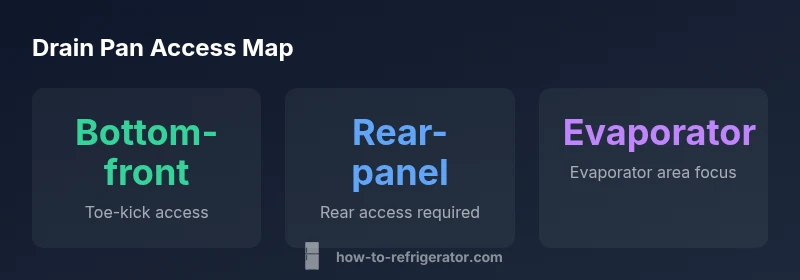

Common drain pan locations by model family
Drain pan locations vary by design. In many affordable and compact models, the pan is tucked behind the toe-kick at the bottom front. In larger bottom-freezers or French-door units, the pan is typically near the rear or under the evaporator assembly, sometimes accessible only after removing a rear panel. The key is to identify the path of defrost water from the evaporator to the pan. If your appliance features a rear access panel, expect the pan to be behind that panel or just beneath the condenser area. For side-by-side configurations, the pan is often under the front kickplate area and may require moving the refrigerator slightly to access.
Safety and preparatory steps
Before you begin any access work, unplug the refrigerator to prevent electrical shock and moisture risk. Have a towel or shallow tray ready to catch any residual water. Gather a screwdriver or socket set that matches your model’s screws, a flashlight for dark corners, and gloves for grip and hygiene. If you’re unsure about panel removal, consult the owner’s manual or manufacturer’s website for the exact panel locations and screw sizes. Avoid forcing panels; misalignment can lead to cracks or broken clips.
Step-by-step: locating the drain pan in bottom-freezer models
- Move objects away from the fridge and unplug it. 2) Locate the toe-kick at the bottom front; you may need to remove a plastic grille or a recessed panel using a flathead screwdriver. 3) Gently pry the kick plate loose and set it aside. 4) Look for a shallow tray or molded reservoir near the base of the cabinet, typically at the back or center-front depending on model. 5) If you don’t see the pan, feel behind the kick plate for a pull-out tray. 6) Once found, wipe the area, inspect the drain hole or pipe, and clean if needed.
Step-by-step: locating drain pan in French-door and side-by-side models
- Unplug the unit and remove the toe-kick or lower front grill. 2) If there is a back panel, remove it to reveal the evaporator housing and defrost drain line. 3) The drain pan sits beneath the evaporator or at the base of the cabinet; slide it out carefully. 4) If the pan is not obvious, trace the defrost drain line from the evaporator to where it exits the cabinet. 5) Clean the pan and the surrounding area; ensure the drain line is clear of debris to prevent overflow.
Alternative access methods for compact fridges and other layouts
Small or compact refrigerators may place the drain pan behind the rear panel or above the base plate. In these cases, you may need to tilt the unit slightly and slide the pan out from the back or under the fridge. For built-in models, the pan could be behind a panel in the kick area or tucked under a removable plinth. Always follow the manufacturer’s removal sequence to avoid damage.
- In many models, the drain pan is a shallow, easy-to-remove tray.
- Don’t force panels; refer to the manual for screw locations and panel tabs.
- If you’re uncomfortable, consider a service call rather than risking damage.
Maintenance tips to keep the drain pan clean and functional
Regular maintenance preserves drainage efficiency and protects against odors and leaks. Here’s a simple routine:
- Inspect and clean the pan every 6–12 months or after a large defrost cycle.
- Remove standing water with a sponge, then wash with mild soap and warm water.
- Check the defrost drain hole or tube for clogs; flush with warm water or a gentle cleaning brush.
- Replace worn seals, and keep the area around the pan dry to prevent corrosion.
- If you notice recurring water pooling, inspect the pan’s mounting and the evaporator assembly for leaks.
Troubleshooting: signs of problems and quick fixes
If you observe frequent leaks, water under the fridge, or moldy odors, the drain pan may be full, cracked, or misaligned. Start by removing and inspecting the pan for cracks or warping. Clean and dry it completely before reinstalling. Check the defrost drain line for jams; a clogged line can back up water into the pan or interior. If the pan can’t be reseated properly, you may need a replacement part and a service call.
When to call a professional
If you’re uncomfortable with removing kick plates, accessing rear panels, or if there’s evidence of a coolant leak, call a qualified technician. A professional can diagnose potential causes beyond the drain pan, such as a failing evaporator, damaged drain lines, or an overflowing tray. Regular maintenance is best handled by someone with the right tools and model-specific instructions.
Drain pan locations by refrigerator type
| Refrigerator Type | Drain Pan Location | Access Method |
|---|---|---|
| Bottom-freezer | Behind toe-kick at base | Remove toe-kick panel; pan behind front-bottom grille |
| French-door | Rear bottom area behind rear panel | Detach rear access panel; slide pan forward |
| Side-by-side | Under front kickplate | Remove kickplate; pan sits beneath evaporator tray |
FAQ
Where is the drain pan located in a French-door refrigerator?
In many French-door models, the drain pan sits near the rear bottom area or beneath the evaporator. Access typically requires removing the rear panel or toe-kick, depending on the design. Always unplug the unit and follow the model-specific instructions.
In most French-door fridges, look behind the rear panel or under the toe-kick at the bottom to find the drain pan. Remember to unplug first and follow your model’s manual.
Can I access the drain pan without moving the fridge?
Some models allow access through the toe-kick or a lower front panel. If you can’t reach it from the front, you may need to carefully move the unit and remove a back panel or kick plate. Always consult the owner’s manual for model-specific instructions.
Often you can access it through the toe-kick, but if not, you might need to pull the fridge a bit to reach the back panel—check your manual.
What tools do I need to locate the drain pan?
You’ll typically need a screwdriver or socket wrench, a flashlight, and gloves. Have towels ready to catch any residual water. Unplug the fridge before starting.
Grab a screwdriver, flashlight, gloves, and a towel. Always unplug the fridge first.
What should I do if the drain pan is full of water?
Carefully pour or sponge out the water into a bucket, then clean and dry the pan. Inspect the defrost drain line for clogs and clear any debris to prevent future overflows.
Carefully empty the water, clean the pan, and check the drain line for clogs.
How often should I inspect the drain pan?
Inspect during routine maintenance, at least once a year, and after any defrost issues. Look for cracks, warping, or mold and replace or clean as needed.
Plan a yearly check, and after any defrost problems, to keep it in good shape.
“A functioning drain pan may be small, but its impact on preventing leaks and odors is substantial. Regular checks keep your refrigerator reliable.”
Top Takeaways
- Identify pan location by model family before attempting access
- Always unplug the fridge before panel removal
- Clean and inspect the pan to prevent odors and leaks
- Consult the model manual if panels are difficult to remove or not obvious
