lfds22520s Repair Guide: Fix Your Refrigerator
A comprehensive, step-by-step guide to diagnosing and repairing lfds22520s refrigerators, with safety tips and practical maintenance advice from How To Refrigerator.
Goal: Diagnose and fix common lfds22520s refrigerator issues using a safe, structured approach. This quick guide covers power checks, thermostat verification, defrost drain inspection, condenser coil cleaning, and seal evaluation. Gather the listed tools, follow the step-by-step process, and avoid common mistakes to restore reliable cooling and prevent repeat faults.
Understanding lfds22520s and common faults
lfds22520s is a refrigerator model code used in many household configurations. Typical symptoms include warm compartments, frost buildup, unusual noises, water leakage, and inconsistent temperatures. Root causes vary from dirty condenser coils and a blocked defrost drain to a faulty thermostat, worn door seals, or a failing compressor. This overview helps you map symptoms to probable faults, so you can target repairs safely and effectively. Always confirm your model matches lfds22520s before performing maintenance.
Safety, prerequisites, and prep
Working on a refrigerator involves electricity, sharp edges, and heavy components. Begin by unplugging the unit and moving it away from the wall to access the back. Gather your tools, grab a flashlight, and wear eye protection. Use a non-slip mat and have a small tray for screws and fasteners. If your unit is on a cramped or high-voltage circuit, contact a professional technician before proceeding. Remember that safety is the highest priority when performing any appliance repair.
Diagnostic approach and test methods

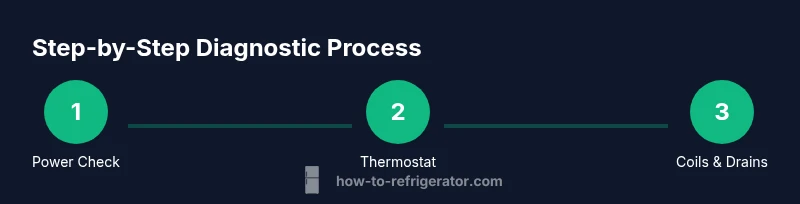

Adopt a systematic approach: verify power, check the thermostat and sensor, inspect seals, scan coils, and test airflow. Start with power verification using a multimeter or a plug-in tester. Then confirm that the thermostat setting corresponds to the actual temperature inside the fridge and inspect the temperature sensor for accurate readings. Finally, evaluate coil cleanliness and airflow across the evaporator and condenser to identify thermal bottlenecks that impact cooling performance.
Step-by-step fixes overview
This section outlines actionable actions you can perform as a homeowner. Each action is designed to be safe and to help you confirm whether a fault is present or resolved. If any step reveals a dangerous condition or unusual noise, stop and seek professional help. After completing each fix, allow 15–30 minutes for the system to stabilize and re-test temperatures and humidity levels.
Authority sources and ongoing maintenance
For deeper understanding of energy efficiency and safe repairs, consult credible sources from energy and safety authorities. How To Refrigerator uses general guidelines and references to public resources. You can review Energy.gov guides on refrigerator efficiency, EPA safety considerations, and FTC consumer tips for DIY repairs. These sources are intended to supplement hands-on guidance, not replace professional repair services.
Common myths and troubleshooting pitfalls
Misinformation can lead to unnecessary repairs or safety hazards. Don’t assume louder noises always indicate a compressor failure; some sounds come from normal condenser fan operation. Also, avoid over-tightening seals, which can cause leaks or damage. Finally, never bypass safety components or refrigerant lines to save time. Rely on measured tests rather than speculation.
Tools & Materials
- Voltage tester / multimeter(Check outlet voltage and continuity on suspect components)
- Phillips and flathead screwdriver set(1/8"-1/4" bits; magnetic tip preferred)
- Nut driver set (3/8", 1/4")(For screws in condenser panel and access panels)
- Torx drivers (T20, T25)(Used on certain models)
- Plastic pry tool(Careful to avoid damaging plastic housings)
- Flashlight or headlamp(Bright light to inspect coils and connections)
- Magnetic parts tray(Keep screws and small parts organized)
- Safety gear (gloves, eye protection)(Protect hands and eyes during maintenance)
- Warm water with mild dish soap(For gentle defrost drain flushing)
- Defrost drain snake or flexible wire(For clearing a clogged drain)
Steps
Estimated time: 90-150 minutes
- 1
Check power supply and outlet voltage
Unplug the fridge, inspect the power cord for signs of wear, and test the outlet with a plug-in tester to confirm standard 110-120V supply. If you observe poor voltage or frequent breaker trips, pause the repair and address electrical supply issues first. Ensure the fridge is on a dedicated circuit if possible to minimize interference from other devices.
Tip: Use a dedicated circuit and avoid extensions or strips that can cause voltage drop. - 2
Test thermostat and temperature sensor
Access the thermostat and sensor assembly. Use the multimeter to check resistance or continuity according to your model’s service data. Compare readings to the expected spec in your manual; if readings are out of range, replace the defective component. Ensure the door is closed during testing to avoid false readings.
Tip: If you don’t have the exact spec, replace the sensor with a compatible unit rather than guessing. - 3
Inspect door seals and gasket integrity
Visually inspect for cracks, tears, and deformations in the door gasket. Perform the feel test by closing the door on a piece of paper; if the paper slides out easily, the seal needs replacement. Clean any dirt or grime that can prevent a tight seal.
Tip: Replace worn seals promptly to restore energy efficiency and prevent moisture issues. - 4
Clean condenser coils and air paths
Locate the condenser coils, usually at the back or underneath. Use a stiff brush and a vacuum to remove dust and debris. Avoid using water directly on electrical components; give the coils time to dry if you use compressed air.
Tip: Perform this cleaning every 6–12 months to maximize efficiency and cooling performance. - 5
Clear defrost drain and check for frost buildup
Inspect the defrost drain for clogs; gently probe with a flexible wire or defrost drain snake. Flush with a small flow of warm water to dissolve any blockage. If frost accumulation reappears, investigate defrost heater and timer for potential faults.
Tip: Never use hot water aggressively; gradual flushing reduces the risk of cracks in plastic tubing. - 6
Test refrigeration cycle and airflow after reassembly
Reconnect power, close all service panels, and monitor the system as the fridge returns to normal operation. Wait 30–60 minutes to assess temperature and ice formation. If cooling is inconsistent, re-check the evaporator fan and sensor connections before calling for service.
Tip: Keep a record of temperatures over time to detect slow drift or intermittent faults.
FAQ
What is lfds22520s and what issues does it typically have?
lfds22520s is a refrigerator model code used to identify a particular set of appliance features. Common issues include not cooling properly, frost buildup, leaks, and unusual noises. This guide helps you troubleshoot these symptoms safely and determine whether professional service is needed.
lfds22520s is a refrigerator model code; common problems include poor cooling, frost, leaks, and noise.
How do I know if the defrost drain is blocked in lfds22520s?
Signs of a blocked defrost drain include standing water in the fridge or freezer, slow drainage, and frost buildup along the evaporator. Clear the drain with a flexible tool and flush with warm water to remove the blockage.
Look for water pooling or frost near the evaporator; clear the drain and flush with warm water.
Can I fix not-cooling issues on the lfds22520s myself?
Some not-cooling issues are solvable with basic maintenance—thermostat, seals, coils, and fans. If the compressor or refrigerant system is implicated, or if electrical safety feels uncertain, stop and call a professional.
Some cooling issues you can fix at home, but do not attempt refrigerant work yourself.
What tools do I need for lfds22520s repairs?
You’ll need a basic toolkit plus a multimeter, coil brush, a flashlight, and wire labels. Have a tray for screws and spare parts, and consider a defrost drain tool if you expect drainage issues.
A basic toolkit with a multimeter, brushes, and labeled screws will cover most tasks.
When should I call a professional for lfds22520s repairs?
Call a professional if you detect refrigerant leaks, suspect compressor failure, have electrical hazards, or if the device continues to malfunction after basic maintenance.
If you suspect refrigerant or compressor issues, or if problems persist after basic checks, contact a professional.
Watch Video
Top Takeaways
- Diagnose power and thermostat first.
- Inspect seals and coils for energy efficiency.
- Clear defrost drains to prevent leaks.
- Test and wait for stabilization after fixes.
- Document steps for accurate reassembly.
