How to Install Refrigerator Water Line: A Complete Guide
Learn to install a refrigerator water line safely with a clear, step-by-step approach. From valves and tubing to leak testing, follow this guide to protect against leaks and ensure a steady ice-maker supply.
You will install a dedicated refrigerator water line and connect it to a cold-water supply. This quick guide covers selecting a shutoff valve, planning safe routing, choosing tubing, and performing a leak test to ensure a reliable ice maker and water dispenser. Follow local codes and turn off the main water before starting.
Why install a refrigerator water line
Installing a dedicated water line for your refrigerator delivers a consistent water supply to the ice maker and water dispenser, reduces the risk of leaks from DIY connections, and helps prevent damage from improper fittings. For homeowners seeking a long-term, low-maintenance setup, this task is worth the upfront effort. When you know how to install refrigerator water line correctly, you avoid common issues like drips, frozen coils, or mineral buildup at connectors. According to How To Refrigerator, a properly planned install reduces leak potential and improves fridge performance by delivering steady pressure and clean water. This article uses practical steps, common-sense safety practices, and maintenance tips that apply to most standard kitchen setups. The goal is a discreet, code-compliant line that blends with your existing plumbing while providing reliable water for beverages and the ice maker.
As you begin, remember that every home is different. The exact tubing size and valve type depend on your supply line and fridge model. Start by reviewing your refrigerator’s installation manual and your home’s plumbing layout. If you’re unsure about your local codes or the feasibility of routing a line through walls or cabinets, consult a professional. Still, many homeowners with basic plumbing skills can complete this project with patience and careful measurement. The How To Refrigerator team recommends proceeding methodically and testing thoroughly before putting the system into service.
Safety and code considerations
Before you touch any pipes, shut off the water supply and unplug the fridge from its power source to prevent accidental shocks or water on electrical components. Working around water and electricity requires caution; never cut corners with fittings or seals. Check local building codes for new water lines and ensure you use approved materials (tubing, valves, and connectors) rated for potable water. If you live in an apartment or rental, obtain written permission from the property manager and confirm the wall pass-through method won’t violate any building rules. Keep a towel or small bucket handy to manage drips during the installation. Always wear eye protection when cutting tubing or drilling through walls. If you notice corroded pipes or brittle existing connections, pause and consider a professional assessment. This is not a project to force through with makeshift solutions, as leaks can cause water damage and mold over time.
Per How To Refrigerator guidance, plan the route carefully to minimize bending, kinks, or sharp edges. A straight run with gentle curves will help prevent future leaks and reduce wear on the tubing. Document the route with painter’s tape or a marker, so you can retrace your steps if needed. Finally, if you’re using a through-wall installation, seal the pass-through with a gasket or silicone to prevent drafts or pests from entering the cabinet. Safety and compliance pay off in the long run.
Planning your layout and route
A clean, simple route is key to a reliable install. Begin by locating the nearest cold-water supply valve and considering the shortest practical path to the refrigerator location. If the fridge sits far from the supply, evaluate alternatives such as a longer supply line or a different routing path that avoids appliances or heat sources. Measure the distance from the shut-off valve to the fridge inlet with a flexible tape measure, and add a little extra length for fittings and bends. Plan your route to stay away from heat sources, electrical cables, and sharp cabinet corners. In many kitchens, a straight run under cabinets offers the best combination of accessibility and concealment. As you plan, factor in future maintenance; an accessible shut-off valve makes leak testing and line replacement much easier. The route should minimize vibration transmission to the fridge, which can loosen fittings over time.
Remember: tubing length, bend angles, and connector compatibility must match the valve outlet and fridge inlet. If you’re unsure about the route, sketch a quick diagram and compare it against the actual wall or cabinet layout. This forethought reduces the likelihood of rework and accidental damage during installation.
Choosing valves and tubing
Most residential installations use a 1/4-inch OD tubing with a compression shut-off valve at the supply. If your water line uses a push-fit or compression connection, ensure the valve size matches your tubing as well as the fridge inlet. Materials vary: copper tubing is sturdy but less forgiving for long runs; plastic (PEX) is flexible and easier for tight spaces; braided stainless steel supply lines offer durability and a cleaner look. For cold-water lines, select potable-water-rated tubing and connectors to avoid mineral buildup and contamination. When selecting valves, choose a valve that can be easily accessed for future maintenance without moving the fridge. Always use Teflon tape or pipe thread sealant on threaded connections to minimize leaks. Test each connection as you go, tightening cautiously to avoid over-tightening which can crack fittings.
If your home uses older 3/8-inch shut-off valves, you may need adapters to fit a 1/4-inch tubing line. In all cases, verify compatibility with the fridge model and the local plumbing code. If you encounter unusual fittings or unusual pipe materials, consider a professional consultation to ensure safe compliance and a leak-proof setup.
Tools and materials you’ll need (overview)
Before you start, gather the essential tools and materials to avoid mid-project trips to the hardware store. A typical setup includes a shut-off valve compatible with your supply line, appropriate tubing or braided line (usually 1/4-inch OD), tubing cutter, adjustable wrench, thread sealant or plumber’s tape, a bucket or towels for leaks, a drill and appropriate bit if you need wall pass-through, and silicone sealant for the final pass-through seal. Keep a marker, level, and flashlight handy to ensure a precise, clean installation. If you’re unsure about wall routing, you may want to add extra fittings and a sample length of tubing to test different routes. The goal is to assemble a complete kit that covers all connection points and potential contingencies before you begin.
Remember, even with the same fridge model, your home’s plumbing configuration can change the required components. Always reference the fridge’s installation manual and the valve specifications to confirm you have matching sizes and materials. A well-prepared toolbox prevents delays and leaks.

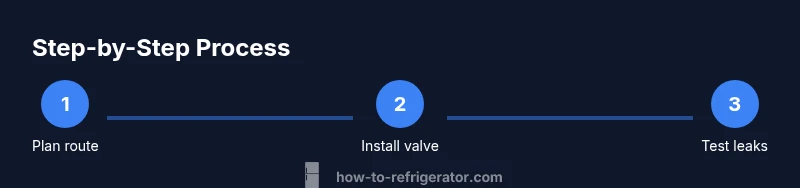

Step-by-step overview (high-level)
This section outlines the overall flow of the installation. You’ll start by turning off water and power, measure the run, install the shut-off valve, cut and prepare tubing, connect to the valve and fridge inlet, test for leaks, secure the tubing, then complete final checks. This overview helps you visualize the process before diving into each detailed step. The actual instructions follow in the dedicated STEP-BY-STEP block, which provides precise actions, reasons, and time estimates for each action. Planning ahead — including route choice and valve placement — reduces risk and simplifies maintenance.
Leak testing and maintenance
After you complete the connections, slowly turn the water back on and inspect every joint for drips. It can take a few moments for pressure to stabilize; be patient and observe for any slow leaks along the valve stem, fittings, or tubing. If you notice a leak, tighten the corresponding connection a quarter turn at a time and recheck. After a 15–30 minute observation window, run water through the dispenser to purge air and ensure a clean flow. Periodic checks (monthly for the first quarter) will help catch slow leaks or fittings that loosen over time. Keep an eye on temperature and pressure indicators on the fridge, and address any unusual noises or damp spots promptly.
Common mistakes to avoid
Rushing the install often leads to cross-threaded fittings, kinked tubing, or inadequate sealing. Avoid using non-potable or damaged tubing, and never skip the leak test step. Don’t route tubing through sharp metal edges or areas with frequent vibrations. Avoid extensions that create long straight runs without adequate support. Finally, don’t neglect a pass-through seal where the line exits a wall or cabinet; a small gap can lead to energy loss, pests, or moisture issues. By taking your time and verifying each connection, you greatly reduce the chance of expensive water damage and ensure a long-lasting setup.
Aftercare and long-term maintenance
Once the line is installed, keep the area around the connection clean and dry. Regularly inspect the fittings for signs of wear or corrosion, especially if you have hard water. If you move the fridge or notice a change in water pressure, re-check the line and valve alignment. Replace any damaged tubing promptly, and consider periodic flushes to prevent mineral buildup. Maintaining a clear, accessible shut-off valve is key to easy future maintenance and quick emergency shutoffs. Following these best practices will help you enjoy reliable ice and cold water without the fear of hidden leaks.
Tools & Materials
- Shut-off valve (compression type)(Match outlet size to tubing (commonly 1/4" OD))
- 1/4-inch OD tubing or braided stainless steel supply line(Potable water-rated; length based on routing plan)
- Tubing cutter(Clean, straight cuts for best seals)
- Adjustable wrench(For securing fittings without overtightening)
- Teflon tape or pipe thread sealant(Seal threaded connections)
- Drill and bit for wall pass-through(Only if you need to run line through cabinet/wall)
- Silicone sealant(Seal through-wall passages and protect from moisture)
- Bucket and towels(Catch drips during testing)
- Marker and tape(Mark route and pipe positions)
- Safety goggles(Protect eyes when cutting or drilling)
Steps
Estimated time: 60-120 minutes
- 1
Shut off water and unplug fridge
Locate the home water shut-off valve and turn it off to stop water flow. Unplug the refrigerator to avoid any electrical hazards while you work. This ensures your safety and prevents water damage if a joint leaks during the process.
Tip: Take a photo of existing connections before you start for reference. - 2
Plan the route and measure
Assess the shortest, cleanest route from the valve to the fridge inlet. Use a tape measure to determine tubing length with extra slack for bends. Mark the path on the wall or cabinets to guide cutting and routing.
Tip: Minimize sharp bends; aim for gentle curves to reduce wear. - 3
Install the shut-off valve
Install the compression shut-off valve on the cold-water supply line following the manufacturer’s instructions. Ensure the valve is accessible for future maintenance and won’t be blocked by cabinet doors.
Tip: Never reuse old compression ferrules; replace with new ones for a tight seal. - 4
Cut and prepare tubing
Cut the tubing to length with a clean, square cut. Deburr any sharp edges and dry the ends to ensure a good seal when connecting fittings.
Tip: A straight cut minimizes leaks at the joint. - 5
Attach tubing to valve
Connect the tubing to the shut-off valve using the appropriate compression fit or clamp. Tighten securely, but avoid overtightening which can deform tubing and cause leaks.
Tip: Check that the tubing is fully seated and not twisted. - 6
Route tubing to the fridge inlet
Run the tubing along the planned route to the fridge, securing with clips or brackets to prevent movement. Keep the tube away from heat sources, sharp edges, and moving parts.
Tip: Leave a small bend allowance at the refrigerator end for movement. - 7

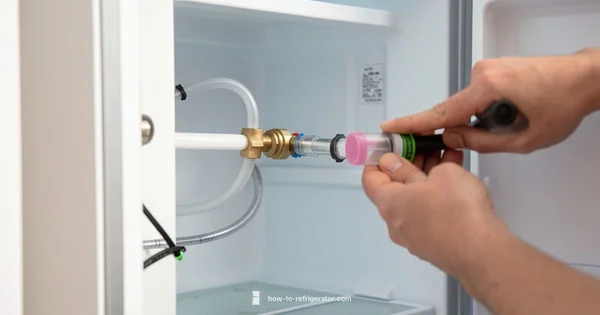

Connect to the fridge inlet
Attach the tubing to the fridge’s water inlet using the appropriate connector. Hand-tighten initially, then snug with a wrench per the connector’s guidelines.
Tip: Use only the manufacturer-approved fittings for your fridge model. - 8
Test for leaks
Slowly turn the water back on and observe all connections. Wipe away moisture and look for drips at each joint. If you see a leak, tighten incrementally and re-test.
Tip: Test each joint separately to isolate leaks quickly. - 9
Purge air and restore power
Run water through the dispenser to purge air from the line. Reconnect the fridge’s power, and monitor for a steady flow without interruptions.
Tip: Let the fridge run for a few minutes while watching for irregularities.
FAQ
Do I need a professional to install a refrigerator water line?
Most homeowners with basic plumbing skills can install a refrigerator water line by following manufacturer instructions and local codes. If you encounter complex plumbing, check for lead or galvanized pipes, or outdated valves, and consider hiring a licensed plumber.
Most homeowners can install it themselves if codes are followed. Call a pro if you have old pipes or mixed materials.
What kind of tubing is best for a fridge water line?
1/4-inch OD tubing is common for refrigerator lines. You can use copper, PEX, or braided stainless steel depending on distance and code requirements. Always choose potable-water-rated tubing and compatible connectors.
Typically 1/4-inch tubing; choose copper, PEX, or braided stainless depending on your setup.
How long does it take to install a fridge water line?
Most installations take about 60 to 120 minutes, depending on routing complexity and access to supply lines. Allow extra time for leaks checks and adjustments.
Around an hour to two, depending on routing and access.
Can I run the line through an exterior wall?
Yes, but you must use a proper wall pass-through and weatherproof sealant to prevent drafts and moisture intrusion. Ensure the route doesn’t compromise insulation or electrical wiring.
You can, but seal well and ensure it won’t affect insulation or wiring.
What safety steps should I take before starting?
Shut off the main water supply and unplug the fridge. Wear eye protection and ensure the workspace is dry. If you feel unsure, stop and consult a professional.
Turn off water and unplug, wear protection, and don’t rush.
What should I do if I see a leak after installation?
Turn off the water, dry the area, and inspect fittings. Tighten only a little at a time and re-test. If leaks persist, replace the faulty fitting or tubing and seek professional help.
Shut off water, dry area, and recheck fittings. Seek help if leaks persist.
Do I need to replace the shut-off valve if it’s old?
Old or corroded valves can fail. If you notice stiffness, leaks, or degraded seals, replace the valve with a fresh, compatible unit to ensure a secure connection.
Replace old valves to prevent leaks and ensure compatibility.
Watch Video
Top Takeaways
- Plan your route before cutting.
- Use potable tubing and approved fittings.
- Test for leaks slowly and thoroughly.
