How to Calculate Refrigerator Starting Watts: A Homeowner's Guide

Understanding Starting Watts and Inrush Current

In electrical terms, starting watts refer to the peak power a motor or compressor draws when it first starts. This is usually higher than the running watts, which are the power the device uses during steady operation. For refrigerators, the compressor motor generates an inrush current as it encounters initial resistance and begins spinning. Estimating this surge is crucial for selecting a suitable circuit, outlet, and any surge protection. If the starting surge is too large for the circuit, you may trip the breaker or overload wiring. According to How To Refrigerator, knowing the starting wattage helps homeowners decide whether a dedicated circuit is necessary and whether a generator or UPS is appropriate for power interruptions.

Key points:

• Inrush occurs at startup due to motor windings and capacitors engaging.
• Start-up power is not constant; it decays as the motor reaches running speed.
• Accurate estimates prevent nuisance trips and protect cooling performance.

Running Watts vs Starting Watts: What Most Fridges Need

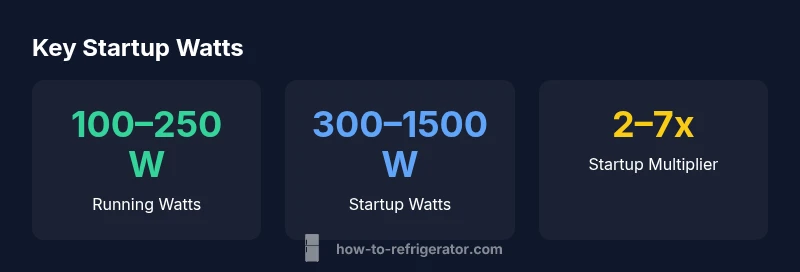

Running watts indicate the steady power draw once the compressor is running. Starting watts reflect the momentary surge when the compressor begins to move. For many residential refrigerators, running watts commonly sit in the range of about 100–250 W. Startup watts, by contrast, can spike to a wide band—often 300–1500 W—depending on compressor design, age, defrost cycles, and refrigerant characteristics. These figures are general guidelines used by homeowners to assess circuit capacity and outlet suitability. How To Refrigerator emphasizes that the exact numbers vary by model, but planning around a peak surge helps avoid unexpected trips and voltage drops.

Step-by-Step: How to Estimate Start-Up Wattage

1. Find the fridge’s running watts: check the label on the appliance or the user manual for “running watts” or “running current.” If not listed, you can estimate using watts from the motor rating.
2. Choose a startup multiplier: many sources use a multiplier between 2 and 7, depending on compressor size and features.
3. Calculate startup watts: multiply the running watts by the startup multiplier to get an estimate of peak startup power.
4. Consider voltage: in a typical 120V system, startup watts translate to startup amps more precisely when you divide by voltage.
5. Validate with measurement: for the most accurate result, use a power meter on a running fridge to observe actual inrush.

A simple, practical rule is: Startup Watts ≈ Running Watts × Startup Multiplier. This approach aligns with what homeowners need to size circuits and plan for outages. How To Refrigerator’s guidance shows this method is reliable for home use when combined with actual measurements.

Using the Refrigerator Starting Watts Calculator

The calculator lets you input three values to estimate startup watts quickly:

• Running Watts (W): typical fridge running power, e.g., 120–250 W.
• Startup Multiplier (times): how many times the running power the startup surge could reach, e.g., 2–7x.
• Supply Voltage (V): the outlet voltage, usually 120 V in North America.

Example:

• Running Watts: 150 W
• Startup Multiplier: 3
• Startup Watts (calculated): 150 × 3 = 450 W

This result represents a peak surge the appliance might present at startup. Use it to verify your circuit breaker rating and outlet capability. The calculator is designed for homeowners who want a quick, sensible estimate, not a precise manufacturer spec.

Factors That Influence Startup Surges

Startup surges aren’t identical across all fridges. Several factors influence surge magnitudes:

• Compressor type and size: larger compressors typically draw higher inrush.
• Defrost cycle and condenser fan load: active fans and coils can increase surge patterns.
• Ambient temperature and door openings: cooler ambient temperatures reduce load slightly, while opening doors during startup can change load distribution.
• Voltage stability: fluctuating supply voltage can magnify perceived startup watts.
• Age and refrigerant charge: older units or low refrigerant can alter surge behavior.

Understanding these factors helps homeowners adjust expectations and select appropriate surge protection and circuit sizing. As observed by the How To Refrigerator team, real-world measurements on your specific model provide the best planning accuracy.

Real-World Scenarios and Examples

Scenario A: Compact counter-depth fridge in a small kitchen. Running watts are often near 120–180 W with a startup surge around 400–800 W. Scenario B: Standard top-freezer, 150–230 W running, 600–1100 W startup depending on compressor. Scenario C: French-door with modern inverter compressor, running around 100–180 W but startup can spike toward 700–1200 W if the inverter engages full power briefly.

Remember these are illustrative ranges to help you plan; exact numbers depend on model and age. Use the calculator and, if possible, a power meter for accuracy.

Safety, Outlets, and Circuit Sizing

A refrigerator with unpredictable startup surges should ideally be on a dedicated 15-amp or 20-amp circuit, away from high-load devices. Use a properly rated outlet and avoid cheap adapters or long extension cords, which can add resistance and voltage drop. In areas with unstable power, consider a surge suppressor designed for refrigerators, and ensure the panel and wiring are up to code. Based on How To Refrigerator analysis, checking circuit capacity against the estimated startup watts helps prevent nuisance trips and preserves cooling performance during power events.

Common Mistakes and How to Correct Them

• Misinterpreting the label: running watts and startup watts are not always the same; rely on the startup calculation rather than guesswork.
• Skipping measurement: labels can be optimistic; verify with a watt-meter on an actual run.
• Underestimating voltage drop: long cords or under-sized wiring can magnify startup demand; plan for a short, heavy-gauge connection.
• Assuming all fridges surge the same: even within the same model family, components vary; measure when possible.

Correcting these helps ensure safe startup, reliable cooling, and fewer trips to reset breakers or reset smart outlets.

Quick Start Checklist for Homeowners

• Find running watts on the appliance label or manual.
• Choose a reasonable startup multiplier (2–7x) based on compressor size.
• Use the calculator to estimate startup watts and compare to your circuit rating.
• If in doubt, install on a dedicated circuit and consider a measurement with a watt meter.
• Keep the fridge in a stable environment to minimize surge variability.
