Fixing Refrigerator Fan: DIY Troubleshooting and Repair
Learn to diagnose, test, and safely replace a faulty refrigerator fan with clear, step-by-step instructions. Tools, safety tips, and when to call a pro for professional repair.
By following this guide, you’ll diagnose a frozen evaporator or noisy fan, power down safely, access the evaporator housing, test the motor, and replace it if needed. You’ll learn which parts to inspect, how to choose a compatible replacement, and how to test airflow after reassembly. This process emphasizes safety and proper wiring.
Why Refrigerator Fans Fail
Refrigerator fans, especially the evaporator fan in the freezer compartment, are built for long service but can fail due to ice buildup, worn bearings, dirty blades, or loose wiring. According to How To Refrigerator, common causes include ice buildup from incomplete defrost cycles and dirty blades that increase motor load and shorten fan life. A failing fan disrupts airflow, leading to uneven cooling and frost buildup around the evaporator coils. Understanding these failure modes helps you decide whether a simple cleaning, a blade replacement, or a full motor swap is the right move. When you fix a fridge fan, you’re not just silenting noise—you’re restoring efficient cooling and preventing further compressor strain. Keep a moral of safety in mind: disconnect power before any inspection and keep the workspace dry.
Common Signs Your Fan Needs Repair
Listen for new or unusual noises like loud buzzing, grinding, or rhythmic chattering while the fridge runs. Look for frost accumulation near the evaporator and warmer air at the interior vents. If the freezer section is unusually cold while the fridge side stays warm, that can indicate poor airflow caused by a failing fan. You may also notice the motor runs continuously or starts and stops irregularly. Visual signs, such as ice buildup around the fan housing or a visibly damaged blade, point toward mechanical wear or obstruction. If you notice ice or frost inside the freezer that doesn’t melt with normal defrost cycles, the evaporator fan is a likely culprit. These symptoms should prompt a careful inspection following safety steps.
Safety First: Can You DIY or Should You Call a Pro?
Fixing refrigerator fan issues can be a straightforward DIY task for homeowners with basic electrical safety awareness, but there are important cautions. You deal with 120V (or higher in some models) lines and refrigeration components. Always unplug the appliance before opening any panels, and avoid touching electrical connectors with bare hands. If you must work near the compressor or refrigerant lines, that’s a sign to seek professional service. When in doubt, prioritize safety and call a licensed technician. How To Refrigerator emphasizes that DIY fixes should be limited to non-hazardous tasks and simple replacements, while complex wiring or sealed-system work is best left to pros.
Diagnosing the Fan: Accessing the Evaporator Fan
To diagnose the evaporator fan, you’ll need to access the back panel inside the freezer compartment. Start by unplugging the fridge, then remove the shelf and the freezer’s rear panel cover. Inspect the fan blades for ice buildup, cracks, or obstruction from debris. Check the fan grille for dust accumulation that could impede airflow. If the blades spin freely by hand and there’s no obvious obstruction, you move toward testing electrical continuity. Photograph screw placements and connectors before disassembly to simplify reassembly. A careful, methodical approach helps you avoid miswiring when you reconnect the fan assembly.
Common Causes: Faulty Motor, Ice, and Wiring
The most frequent culprits are a worn or burnt motor windings, seized bearings, or ice buildup around the motor. Dirty blades or a loose fan housing can cause abnormal vibrations and noise, while frayed or loose wiring may lead to intermittent operation. Ice can form on the evaporator coil due to a defrost timer fault, which subsequently impedes airflow as the fan struggles to move air. In some cases, a faulty capacitor or relay can also prevent the fan from starting reliably. Understanding these causes helps you decide whether to clean, lubricate, replace blades, or swap the motor.
Replacement Options: Replace Motor vs. Replace Fan Assembly
If the fan blade is damaged or the motor shows electrical failure, you may need to replace the entire evaporator fan motor assembly. Some models offer a direct motor replacement, while others require a complete fan housing swap. When choosing a replacement, match electrical specifications (voltage, amperage), blade size, and mounting hole pattern. If the unit is older or the relay and wiring show wear, a full assembly replacement can save future troubleshooting time. Always verify compatibility with your refrigerator model before purchasing a part.
How to Test the Fan with a Multimeter (Optional)
If you’re comfortable with basic electrical testing, you can use a multimeter to check motor continuity. Disconnect the wiring harness, set the meter to ohms, and test between motor terminals. A reading close to the manufacturer’s specified range indicates a healthy motor; an open circuit or an extremely high resistance indicates a faulty coil. If you’re uncertain, consult your appliance’s service manual or contact a professional. For many homeowners, visual inspection plus verified resistance from a replacement motor is enough to decide on replacement.
Reassemble and Test: Ensuring Proper Airflow
After installing a new motor or blade, reassemble the evaporator housing, reconnect the harness, and secure the back panel. Power the unit back on and listen for a smooth, quiet operation. Check airflow by feeling air at the vents and observe the frost pattern after 24 hours. If frost persists or you still hear abnormal noises, recheck blade clearance and mounting screws. Keeping the housing clean and dry helps prolong the life of the new fan and maintain efficient cooling.
Tools & Materials
- Screwdriver set (Phillips and flat-head)(Phillips #1-2 and flat-head for panel screws)
- Nut driver or socket set(For mounting screws on the fan housing)
- Multimeter(For testing continuity on the motor)
- Replacement evaporator fan motor(Match model, voltage, and blade size)
- Replacement fan blades(If the blade is cracked or bent)
- Flashlight(To illuminate tight panels)
- Towels or rags(For catching condensation and spills)
- Owner’s manual(Reference for model-specific screws and wiring)

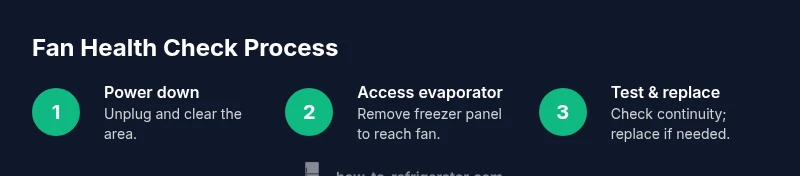

Steps
Estimated time: 60-90 minutes
- 1
Unplug the refrigerator
Disconnect power at the outlet to eliminate shock risk. Move perishable items away from the work area and clear space around the machine to access panels safely.
Tip: Keep a battery-powered light handy and avoid using liquids near electrical connections. - 2
Open freezer and access evaporator cover
Remove freezer shelves as needed and take out the evaporator cover screws. Remove the cover slowly to avoid damaging the foam gasket. This reveals the evaporator fan and housing.
Tip: Take photos of wiring before disconnecting anything so reassembly is accurate. - 3
Inspect fan blades and housing for obstruction
Spin the blades by hand to check for sticking or grinding. Look for ice buildup, bent blades, or debris lodged in the fan grille. Remove any obstruction with a soft brush or cloth.
Tip: Do not use metal tools on blades; blades are delicate and can break. - 4
Test fan motor continuity with a multimeter
Carefully disconnect the wiring harness and set the multimeter to the appropriate resistance setting. Touch probes to the motor terminals and compare against the specs in the manual or replacement part. If there is no continuity, the motor is faulty.
Tip: If you’re unsure, consult the service manual or contact a professional rather than forcing an unknown reading. - 5
Replace the evaporator fan motor
Disconnect all leads, remove mounting screws, and swap in a replacement motor (or entire fan assembly). Reconnect the wires in the same order, secure the housing, and verify the blades spin freely.
Tip: Match voltage, amperage, and blade diameter to avoid mismatches that could damage the unit. - 6
Reassemble the panel and restore power
Reinstall the evaporator cover, replace shelves, and reattach any screws. Plug the fridge back in and ensure doors seal properly.
Tip: Wait a few minutes before testing; initial startup may trigger a defrost cycle. - 7
Test run and monitor performance
Listen for smooth operation and verify airflow at interior vents. Observe frost buildup for the first 24 hours. If noise persists or cooling is uneven, recheck mounting and blade clearance.
Tip: Keep a log of performance for future maintenance and part replacement planning.
FAQ
What causes the refrigerator fan to fail?
Common failures include ice buildup around the evaporator, dirty or bent fan blades, worn bearings, and loose wiring. Regular defrost cycles and clean fans help prevent premature failure.
Common fridge fan failures are ice buildup, dirty or damaged blades, worn bearings, and loose wiring.
Can I fix the fridge fan myself?
Yes for straightforward tasks like cleaning the fan and replacing a damaged blade or a failing motor when you’re comfortable with basic electrical work. If wiring or refrigerant systems are involved, contact a professional.
You can DIY simple fixes like cleaning or blade replacement if you’re comfortable with electrical work; call a pro for wiring or refrigerant concerns.
How do I know if the evaporator fan is the problem?
Signs point to the evaporator fan when you hear unusual noises, see frost buildup around the coils, and experience poor airflow at interior vents. A continuity test on the motor can confirm motor failure.
Look for noises and frost near the evaporator, poor airflow, and run a motor continuity check to confirm.
Do I need a professional to replace the evaporator fan?
Not always. If you’re confident with electrical work and model-specific parts, you can replace the motor or fan assembly yourself. However, complications with wiring or refrigerant systems should be handled by a technician.
You can replace it yourself if you’re comfortable with electrical work; otherwise, hire a technician for wiring or refrigerant concerns.
How long does a fridge fan replacement take?
Most installations take about an hour or two, depending on access to the fan and the need to remove shelves or panels.
Most replacements take about an hour or two, depending on access and panel removal.
Will replacing the fan fix frost buildup?
Replacing the faulty fan often improves airflow and reduces frost buildup, but persistent frost can also indicate a defrost timer or heater issue requiring further diagnosis.
A new fan usually reduces frost if airflow was the main issue, but check the defrost system if frost persists.
Watch Video
Top Takeaways
- Unplug the fridge before any inspection
- Inspect for ice, debris, or blade damage first
- Test continuity to decide between blade replacement and motor swap
- Replace with a compatible motor or fan assembly
- Test airflow and monitor frost after reassembly
