Where Is Refrigerator Compressor Located: A Practical Home Guide
Discover where the refrigerator compressor is located, how to identify its housing, and safe steps to inspect it for maintenance or troubleshooting. Tips.
The refrigerator compressor is typically located at the back of the unit, near the bottom, enclosed by a grill or access panel. Locating it involves unplugging the fridge, removing the rear kickplate or panel, and identifying a large metal canister with copper lines. This quick guide helps homeowners verify location and assess basic condition safely.
Understanding the Refrigerator Compressor Location
The question where is refrigerator compressor located is a common starting point for DIY troubleshooting and routine maintenance. In most household models, the compressor is the heart of the refrigeration cycle and sits behind a rear grille or at the bottom back of the cabinet. Its exact position varies by design: some fridges hide the compressor at the very back, while others tuck it under a toe-kick or behind a removable panel. Regardless of the exact placement, the compressor is the cylindrical or boxy unit connected to copper tubes, and it hums softly when the fridge is running. Recognizing its location helps you plan safe inspections, diagnose basic issues, and prepare for service if needed. According to How To Refrigerator, understanding the compressor’s location is a key step in evaluating cooling performance and potential leaks. For homeowners, this means you can verify proper airflow, watch for oil residue, and confirm that wiring and connections aren’t loose.
The How To Refrigerator team found that most residential units standardize the compressor’s position for ease of maintenance, but some compact or high-efficiency models relocate the unit slightly. When you know where to look, you can quickly check the immediate area for oil stains, residue, or unusual warmth, which often signal a seal problem or a refrigerant issue. If you’re dealing with persistent not-cooling symptoms, locating the compressor is a foundational step in diagnosing the next actions without guessing. Remember to keep the keyword in mind: where is refrigerator compressor located, so you stay focused on the core components during your inspection.
When you start your search, keep the fridge unplugged and the area clear. The compressor is not a hot engine; it’s an electrical device cooled by refrigerant, and working around it requires caution. If you notice any sharp edges or bent copper lines, pause and proceed with extra care. This knowledge aligns with standard home maintenance practices and helps you distinguish benign back-panel access from parts that require professional service.
Brand note: The How To Refrigerator team emphasizes safety first. Before any probe, confirm power is disconnected and you are wearing protective gloves. By adhering to these steps, you reduce the risk of electric shock or accidental contact with sharp components while locating the compressor.
For houses with older or commercial-grade appliances, the location can differ slightly, but the principle remains: the compressor powers the cooling cycle, and its location is usually accessible from the rear or under a panel. If you’re unsure about your specific model, consult the user manual or model-specific diagrams to confirm the exact placement. The task remains the same: identify the compressor housing, check for obvious signs of trouble, and plan your next steps accordingly.
Tools & Materials
- PH2 Phillips screwdriver(for rear panel screws)
- Flathead screwdriver(for prying or aligning components)
- Nut driver set (1/4 inch)(for access bolts behind grille)
- Panel removal tool (plastic)(to avoid damaging grille or panel)
- Multimeter (DC/AC)(to test electrical connections)
- Safety gloves(protect hands from sharp edges)
- Safety goggles(eye protection during inspection)
- Flashlight or headlamp(improve visibility behind panels)
- Zip ties and small container(organize wires and screws)
Steps
Estimated time: 30-60 minutes

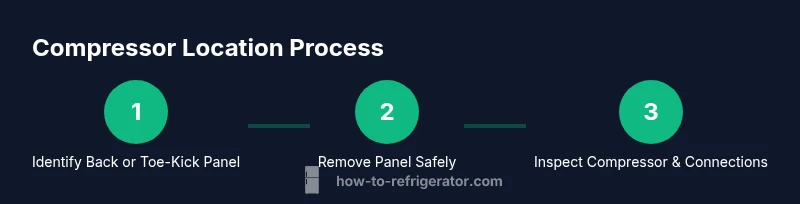

- 1
Power down and unplug the fridge
Begin by pulling the fridge away from the wall and unplugging it. This eliminates the risk of electric shock when you inspect the back or access panels. If you have a surge-protected outlet, switch it off and wait a moment for any stored energy to dissipate.
Tip: Never touch exposed copper lines while the unit is powered; ensure the fridge is fully unplugged before handling any components. - 2
Access the rear panel or toe-kick
Remove the rear grille or toe-kick panel to gain access to the compressor area. Use the appropriate screwdriver and panel tool to avoid damaging trim. Keep screws organized so you can reassemble quickly.
Tip: Label screws and keep them in a small container to prevent misplacement during reassembly. - 3
Identify the compressor visually
Look for a large cylindrical or boxy unit with copper lines entering and exiting. It’s typically mounted to a metal frame and emits a soft hum when the fridge runs. Confirm you’re looking at the compressor by tracing the copper lines to the evaporator coil.
Tip: If you’re unsure, compare to the model’s service diagram or take a photo for later verification. - 4
Check for obvious signs of trouble
Inspect for oil leaks around fittings, oil residue on the base, or bent lines. Any oil near the base can indicate a seal issue, while bent pipes may restrict refrigerant flow. Do not attempt to bend or repair copper lines; note what you see for professional guidance.
Tip: Use a bright flashlight to reveal subtle drips or discoloration that might be missed in dim lighting. - 5
Test basic electrical connections (if comfortable)
If you have training, carefully test the compressor terminals with a multimeter to verify power at the unit. Do not touch terminals while the appliance is connected. Record any abnormal readings and compare them with the manufacturer’s specifications.
Tip: If you’re unsure about readings, skip the test and proceed to the diagnostic notes; incorrect testing can be hazardous. - 6
Document the location and wiring layout
Take clear photos of how wires and hoses connect to the compressor. Label cables and note colors and connection points. This documentation speeds up future maintenance or a technician’s visit.
Tip: Place a small stock of twist ties nearby to secure loose cables after you’ve inspected them. - 7
Reassemble and power on for a basic check
Reattach the rear panel, plug the fridge back in, and return it to its normal position. Listen for the compressor’s hum and monitor cooling performance over the next hour. If the unit remains warm or fails to cool, escalate the issue.
Tip: If you smell burning or hear squealing, immediately unplug and contact a professional.
FAQ
Where is the refrigerator compressor typically located?
Most compressors are located at the back of the fridge, near the bottom, behind a rear grille or kick panel. Some models conceal it under a toe-kick panel. Always unplug the unit before attempting to identify the exact location.
Most fridges have the compressor at the back near the bottom behind a grille. Always unplug first before inspecting.
Is it safe to touch the compressor?
Direct contact with the compressor’s electrical components should be avoided unless you are trained. Unplug the unit first, and use protective gloves if you need to handle the area. Avoid touching copper lines when powered.
Touching it is risky; unplug first and wear gloves if you must handle it.
What does a loud buzzing noise from the back indicate?
A buzzing sound often indicates the compressor is starting or operating normally, but persistent buzzing or clicking may signal motor or relay issues. If the noise changes or worsens, a professional evaluation is advised.
Buzzing can be normal, but changing or worsening noise needs a pro.
Can I replace the compressor myself?
Compressors are sealed refrigerant systems; replacement is a specialized job typically done by licensed technicians. Attempting replacement without proper equipment and knowledge can be dangerous and may void warranties.
Replacement should be done by a licensed tech.
What maintenance can I do to extend compressor life?
Keep the condenser coil clean, ensure proper airflow around the back of the unit, and fix door seals promptly. Regular cleaning reduces strain on the compressor and helps maintain cooling performance.
Keep coils clean and doors sealing well for longer life.
Watch Video
Top Takeaways
- Identify the compressor location first before starting work.
- Unplug the fridge and wear safety gear during inspection.
- Document wiring and panel layout for future reference.
- Only perform basic electrical checks if you are trained.
- Call a pro if you notice refrigerant leaks or persistent cooling issues.
