How to Check Refrigerator Relay: A Homeowner's Guide
A practical, safe guide to check a refrigerator relay. Learn how to identify faults, perform non-destructive tests, and decide when replacement is needed for homeowners troubleshooting appliance issues.
By the end of this guide, you’ll know how to check a refrigerator relay for faults, confirm whether the relay is preventing the compressor from starting, and safely replace or bypass it if needed. The process includes unplugging the unit, locating the start relay, testing with a multimeter, and verifying operation before reassembly.
What a refrigerator relay does and common fault signs
The start relay, often built into a PTC thermistor or a dedicated relay, acts as a gatekeeper for the compressor. When the fridge calls for cooling, the relay supplies a surge of current to start the compressor. If the relay sticks closed, overloads, or fails to energize, the compressor may hum, struggle to start, or fail to run at all. If you're wondering how to check refrigerator relay, this overview explains the role and typical symptoms. You’ll typically notice intermittent cooling, extra heat near the back of the unit, or unusual buzzing. Importantly, a faulty relay can mimic other cooling problems, so a careful, methodical check is essential. In this article we’ll focus on practical, safe checks you can do at home using basic tools.
Safety-first checklist before you begin
Safety comes first when working with refrigeration electronics. Unplug the unit from the wall outlet and, if possible, switch off the circuit breaker to prevent backfeeding. Wait at least a few minutes after unplugging to allow capacitors to discharge. Wear insulated gloves and use tools with insulated handles. Keep liquids away from exposed wiring and never test live circuits with the unit connected. If you smell burning insulation or see damaged wiring, stop and call a professional. These precautions help prevent shock and arc faults while you diagnose the relay.
Tools and materials you’ll need (and what each does)
Keep a small toolbox ready with the following essentials. A digital multimeter lets you measure resistance, continuity, and voltage across relay pins. A non-contact voltage tester provides a quick safety check before touching exposed wires. A set of screwdrivers (Phillips and flat-head) helps you access the relay housing. A reference photo or wiring diagram from the owner’s manual makes it easier to identify the correct relay. Optional items include replacement relays or PTC devices if you confirm a fault, and insulated gloves for protection. Having these on hand reduces trips to the store and keeps the process moving smoothly.
Locating the relay on common refrigerator models
Relays live in slightly different places depending on the model. In many units, you’ll find the start relay mounted near the compressor, connected to the start winding with thin wires. On some models, the PTC device is embedded in the capillary housing or behind a service panel on the back of the fridge. If you’re unsure, consult the wiring diagram in the manual or look for a small module with three or more terminals labeled S, C, and R. Taking a photo before disconnecting wires helps you reassemble correctly.

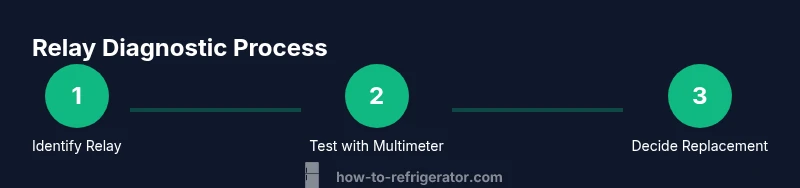

Step-by-step diagnostic approach (non-destructive tests)
Begin with non-destructive checks: visually inspect for damaged insulation, burnt smells, or loose connections. Use the multimeter to check continuity between relay terminals when the relay is not energized. With the fridge unplugged, set the meter to ohms and test across the relay pins. Then, energize the system momentarily to see if the relay engages and closes the circuit to the compressor. If readings are inconsistent or show infinite resistance, the relay is likely faulty. Document readings for comparison if you later replace the unit.
How to test for proper operation during startup
A key test is to measure the relay’s behavior during a controlled startup. In many cases you’ll measure a brief moment of continuity as the relay energizes, followed by a drop as the compressor starts spinning. If you don’t observe any change when applying a simulated start signal (with the unit unplugged and using a safe bench supply or the car battery method described in manuals), the relay may be stuck open. Conversely, a relay that sticks closed may keep the compressor engaged even after power is removed. These patterns help you interpret whether the relay or the compressor is at fault.
Interpreting results and deciding next steps
If the relay tests show normal resistance and the compressor still won’t start, the problem may lie elsewhere (relay wiring, overload protector, or the compressor itself). If the relay consistently fails the continuity test or leaks current, replace it with a compatible unit. When in doubt, compare measurements with the wiring diagram and grab a replacement from the parts list. After any work, reconnect power and observe whether cooling returns to normal. If cooling remains inconsistent, consider calling a professional technician.
Common mistakes and troubleshooting paths
- Rushing to replace parts without confirming the fault wastes time and money. - Mixing up wires during reassembly leads to miswiring and shorts. - Testing with power on is dangerous; always unplug first. - Skipping the manual’s model-specific notes can cause replacement with the wrong relay.
When to call a professional
If you’re uncomfortable with electrical testing, lack the right tools, or the relay tests are inconclusive, it’s wise to bring in a qualified refrigerator technician. A pro can verify whether the relay, overload protector, or compressor is failing and ensure safe, code-compliant repairs.
Tools & Materials
- Digital multimeter(Set to ohms/AC voltage as appropriate; test resistance and continuity)
- Non-contact voltage tester(For quick live checks before touching wires)
- Screwdriver set (Phillips and flat-head)(To open access panels and relay housing)
- Nut driver or socket set(If mounting hardware is tight)
- Insulated gloves(Electrical-rated; handle with care)
- Replacement relay module or start device(Only if you confirm a fault and plan replacement)
- Owner's manual or wiring diagram(Useful reference for exact relay model)
Steps
Estimated time: 45-60 minutes
- 1
Power down and gain access to the relay
Unplug the fridge and, if safe, switch off the circuit breaker. Remove the service panel to expose the relay housing. This initial step prevents shock and accidental compressor start while you inspect the relay area.
Tip: Use a flashlight and take photos of wiring harnesses before disconnecting anything. - 2
Identify the correct relay and document wiring
Look for a module near the compressor with three or more terminals labeled S, C, and R (or similar). Take a close, well-lit photo and label wires so you can reassemble correctly after testing.
Tip: Label each wire as you remove it; mismatched reconnects are a common source of failure. - 3
Disconnect wires one by one
Carefully loosen connectors, one at a time, and keep a tidy record of where each wire goes. Avoid yanking on wires or pulling on the relay housing. Re-check that the fridge remains unplugged throughout.
Tip: Work on a non-conductive mat to reduce slipping and accidental contact. - 4
Test relay resistance with a multimeter (unenergized)
With the unit unplugged, set the meter to continuity or ohms and measure across the relay pins. A healthy relay typically shows a defined resistance when the circuit would close during startup. Compare with any datasheet or model notes you found in the manual.
Tip: Record the exact readings and compare to the expected range from the manual. - 5
Attempt a safe energize test using approved methods
This optional step simulates start conditions without feeding mains directly into the compressor. Only perform if you have the proper equipment and guidance from the manual or a professional. Observe any change in relay behavior and note it carefully.
Tip: Never improvise an energized test with household wiring; only use approved equipment. - 6
Decide replacement vs. repair
If readings are inconsistent or show an open circuit, plan for a replacement relay. If readings are good but the compressor still won’t start, investigate the overload protector or the compressor itself. Having a replacement part on hand reduces downtime.
Tip: Verify compatibility with your model before ordering a replacement.
FAQ
What is a refrigerator relay and what does it do?
A relay helps start the compressor by providing a surge of current to the start winding. It ensures the compressor starts smoothly and then disengages. This guide from How To Refrigerator walks through identifying and testing the start relay.
A relay helps the fridge compressor start; you’ll test it to confirm if it’s failing.
Why does my fridge click but not start?
The most common cause is a faulty start relay or overload protector. Less frequently, wiring faults or a failing compressor can produce a similar symptom. Use the steps in this guide to differentiate between these possibilities.
A click without starting often points to the relay or overload protector, not always the compressor.
Can I bypass the relay to get the fridge running?
Bypassing a relay is not recommended as a long-term fix; it can damage you or the compressor and may violate safety standards. Follow proper testing and replacement procedures outlined in this guide or consult a pro.
Bypassing is risky and not advised; replace or repair it properly.
How do I know if the relay or the compressor is at fault?
If resistance readings are within spec and continuity tests pass, the relay is likely fine and the issue may lie with the compressor or overload. If readings show open or shorted circuits, the relay is suspect. Always compare with wiring diagrams and model notes.
Check readings first; if they’re off, the relay is the likely culprit.
Where can I buy a replacement relay?
Look for a compatible relay from reputable appliance parts suppliers, using your model number and the relay type from the manual. Ensure the replacement matches the exact terminals and ratings.
Find a compatible relay by model and part numbers, then replace it.
Watch Video
Top Takeaways
- Unplug before touching electrical parts.
- Use a multimeter to confirm relay continuity and resistance.
- Relays can imitate other faults; verify with measurements.
- When uncertain, contact a professional for safe repairs.
