How to Install a CPU Cooler
A comprehensive, step-by-step guide to installing a CPU cooler, covering compatibility, mounting options, thermal paste application, and post-install testing for safe, efficient cooling.
By the end of this guide you will successfully install a CPU cooler, selecting the right cooler type, preparing the motherboard, mounting the cooler, applying thermal paste, and verifying temperatures. The steps cover air and liquid coolers, motherboard compatibility, and common pitfalls to avoid for a safe, effective, and quiet build.
Understanding CPU cooling basics
According to How To Refrigerator, understanding how to install cooler cpu begins with grasping the basic purpose of a cooler and how different designs influence temperature, noise, and reliability. A CPU cooler works by removing heat generated by the processor as it performs tasks. When selecting a cooling solution, consider the CPU’s Thermal Design Power (TDP) range, the intended workload, and the size and layout of your motherboard and case. Air coolers use a heatsink and fan assembly that push heat away from the CPU, while liquid coolers rely on a radiator and pump to move heat more efficiently under higher loads. The goal is not just lower numbers on a screen, but a stable, quiet system that avoids throttling during intensive tasks. For the phrase you may be searching, how to install cooler cpu, this guide emphasizes proper socket compatibility, mounting accuracy, and safe cable routing to ensure long-term reliability.
Understanding airflow within your case is also essential. Positive pressure environments (more intake than exhaust) can help keep dust out and maintain consistent temperatures. Ensure you have adequate clearance for tall RAM modules and for any radiator or fan orientations you plan to use. While the science of cooling can seem complex, the practical takeaway is straightforward: match the cooler to the socket, mount it securely, apply a precise amount of thermal paste, and verify temps after boot. This approach minimizes wasted effort and protects expensive components over time.
Compatibility and preparation
Before you touch a screwdriver, confirm compatibility. Check your motherboard’s CPU socket type and ensure your chosen cooler supports it. Several sockets exist across Intel and AMD platforms, requiring different mounting brackets and backplates. Also verify case clearance: radiator sizes, fan dimensions, and the space around PCIe slots and RAM can all impact fit. If you currently have an old cooler, remove it carefully and inspect the mounting surface for residue, bent brackets, or damaged backplates. Clean the contact area with isopropyl alcohol and a lint-free cloth to ensure a smooth seating surface. As you prepare, set aside the required tools and materials so you don’t interrupt the installation mid-step. This phase is about accuracy and foresight, not speed. How To Refrigerator emphasizes calm preparation as the foundation of a successful build.
Next, assess the radiator orientation for liquid cooling and the fan direction for air cooling. For AIOs, determine whether you want the radiator on the top, rear, or front of the case, considering case airflow and dust filters. For air coolers, decide between a tall single-tipe heatsink or a smaller dual-tower design, depending on case space. Your goal is to maximize contact between the cooler’s base and the CPU lid while avoiding contact with tall memory modules or the motherboard heatsinks. This planning phase reduces surprises during the actual mounting and helps you choose the safest, most efficient configuration for your build.
Air cooling vs liquid cooling: choosing the right approach
Choosing between air and liquid cooling hinges on several factors: budget, case space, maintenance tolerance, and performance needs. Air coolers are typically simpler, cheaper, and require less maintenance, making them a reliable choice for most builds. They excel in providing solid cooling with minimal risk. Liquid coolers can offer better thermal headroom for overclocking and quiet operation at higher loads, but they require more careful handling during installation and ongoing maintenance. When deciding, factor in your case size, GPU clearance, and how much space you have behind the motherboard tray. The How To Refrigerator team notes that most mid-range builds perform well with a capable air cooler, while enthusiasts pushing high framerates and overclocking might prefer a compact AIO liquid cooler with a required maintenance cycle.
Regardless of type, mounting accuracy and proper thermal interface material are critical. A poorly seated cooler can result in micro-skips in contact, which raises temperatures. If you’re unsure about compatibility, consult your motherboard manufacturer’s socket compatibility lists and verify that the cooler’s mounting hardware is included for your socket type. In a practical sense, the right cooler matches your workload, fits physically inside the case, and aligns with your noise tolerance goals. This ensures reliable performance over time and aligns with your build’s overall thermal strategy.
Case clearance, RAM compatibility, and mounting considerations
Case clearance is the silent deal-breaker. Even a powerful cooler can be useless if it physically cannot fit. Start by measuring the clearance between the cooler and nearby components like tall RAM modules, the motherboard chipset heatsink, and the case side panel. If your RAM sticks are high-profile, you may need a low-profile cooler or a different fan orientation to avoid interference. Backplates and standoffs must align precisely with the motherboard’s mounting holes; a loose or bent backplate can cause warping or uneven contact.
Mounting hardware varies by cooler design. Some backplates clamp from the back of the motherboard, others rely on a separate bracket system that secures from above. If your case includes a tool-less mounting system, you still may need a screwdriver for final tightening. Always check the manual for socket-specific guidance and torque recommendations. Finally, plan your cable management from the start: tidy cables improve airflow and make future maintenance easier. By focusing on clearance and mounting compatibility, you’ll minimize the number of re-mounts and achieve a cleaner, cooler setup. How To Refrigerator’s analysis shows that careful preparation correlates with smoother installations and better thermal behavior.
Tools & Materials
- CPU Cooler(Includes heatsink, fans, and mounting hardware. Ensure socket compatibility.)
- Thermal Paste(A pea-sized amount for most coolers; spread or let pre-applied paste determine method.)
- Thermal Paste Spreader (optional)(Useful for even distribution if paste isn’t pre-applied.)
- Phillips #2 screwdriver(Necessary for securing mounting screws and backplates.)
- Microfiber cloth or IPA (isopropyl alcohol)(Clean the CPU lid and contact surface before mounting.)
- Anti-static wrist strap (optional but recommended)(Helps prevent static damage during installation.)
- Motherboard manual(Keep handy for socket-specific mounting instructions.)

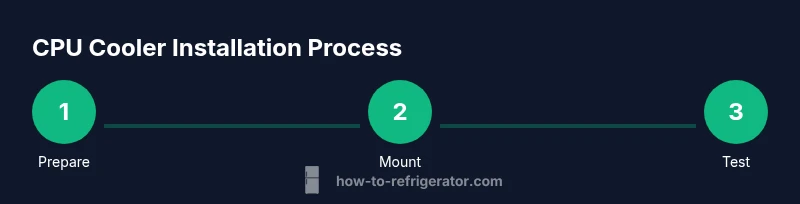

Steps
Estimated time: 45-60 minutes
- 1
Power down and prepare workspace
Power off the PC, unplug from the wall, and remove the side panel. Ground yourself and gather all tools. Inspect the existing cooler and note socket type, RAM clearance, and case airflow. This ensures you won’t be rushing during mounting and reduces the chance of accidentally damaging components.
Tip: Always unplug and touch a metal surface before handling components to discharge static. - 2
Remove existing cooler and clean mounting surface
If you’re replacing an old cooler, carefully detach it from the motherboard and remove any lingering thermal paste. Clean the CPU lid and surrounding area with isopropyl alcohol and a lint-free cloth until the surface is dry and free of residue. This improves contact between the new cooler and the CPU.
Tip: Use a light touch when removing old paste to avoid scratching the CPU lid. - 3
Install backplate or mounting bracket
Align the backplate with the motherboard’s holes for your socket. Insert standoffs or spacers as required, and loosely install screws to allow final alignment. Make sure the backplate is flat and level against the motherboard to prevent misaligned mounting.
Tip: Some sockets require aligning holes with the bracket before fully tightening. - 4
Apply thermal paste and seat the cooler
For coolers with pre-applied paste, skip direct paste application. If not, apply a pea-sized dot at the center of the CPU lid. Place the heatsink straight down and rotate subtly to improve contact. Tighten screws in a diagonal pattern to ensure even pressure.
Tip: Avoid smearing paste off the CPU lid; using a pea-sized amount is typically sufficient. - 5
Attach fans and connect power cables
Mount the fans if not pre-installed, then connect to the appropriate headers (CPU_FAN, AIO_PUMP, etc.). Route cables neatly along the edge of the motherboard tray to prevent interference with RAM or GPU fans.
Tip: Label cables or take a photo of the header arrangement for future maintenance. - 6
Test, monitor temps, and adjust
Power on and enter the BIOS or use software to monitor CPU temperatures. Check for stable idle temps and temperatures under load. If temps are high, recheck seating and fan orientation, and ensure the radiator (for liquid cooling) is properly bled and flowing air.
Tip: If temps are unexpectedly high, reseat the cooler in a diagonal tightening pattern.
FAQ
What should I do if the cooler won’t mount due to clearance issues?
Recheck case clearance and RAM height first. If mounting space is tight, consider a low-profile cooler or reorienting the fan/radiator. You may need to remove some components temporarily to achieve a clean fit, then reinstall once the cooler is secure.
If you’re hitting clearance problems, start by checking RAM height and case clearance; a low-profile cooler or changed orientation often fixes it.
Do I need to remove the motherboard to install a cooler?
In most builds you don’t need to remove the motherboard completely. You may need to detach the motherboard tray or loosen some screws to access backplate mounting, depending on your case. Always follow the cooler’s manual for socket-specific steps.
Usually you don’t remove the whole motherboard; you’ll mount the backplate or brackets with the board in place.
How much thermal paste should I apply?
Apply a small pea-sized dot in the center of the CPU lid for most coolers with a standard contact area. If your cooler uses pre-applied paste, you can skip this step. Too much paste can cause spillover and poor contact.
Use a pea-sized amount of paste in the center; more isn’t better and can cause messier contact.
Is it safe to power on during installation?
Power should be off during mounting and initial seating. After everything is mounted and connected, you can power on to test, but avoid touching moving parts while powered. If you smell burning or see smoke, power down immediately.
Power off during mounting; only power on after everything is secured and connected for testing.
Can I reuse thermal paste from an old cooler?
It’s best to clean off old paste and apply a fresh layer. Reusing paste can impair heat transfer if it’s dried out or contaminated. Clean the surface well before applying new paste.
It’s safer to clean off old paste and apply new material to ensure proper heat transfer.
What should I do if temps remain high after installation?
Recheck seating and ensure there are no air leaks. Verify radiator flow (for liquid cooling) and confirm fan orientation. If temps stay high, consider reseating the cooler or upgrading to a larger cooler.
If temps stay high, reseat the cooler and check that airflow isn’t blocked by cables or dust.
Watch Video
Top Takeaways
- Choose a cooler compatible with your socket and case.
- Mount evenly using a diagonal tightening pattern.
- Apply thermal paste accurately and avoid excess.
- Test temperatures after install to confirm cooling performance.
- Keep cables tidy to maximize airflow and ease future maintenance.
